Excellent geometric construction
The feeding working device of the connecting rod mechanism optimizes the power performance and realizes various work requirements in production.
Stable and reliable
The pressure regulation is accurate and stable, and it can realize pressure increase and pressure decrease sawing and weighing. The working arm is lifted quickly and the operation is more stable.
Programming control system
Matching high-performance proportional valves and self-developed control systems, the parameters can be set on the display screen as needed, and relevant data on felling can be obtained. The operation is more in line with actual felling needs and user operating habits.
Sincerely made
Computer board control, reliable and durable length measurement mechanism, high-intelligence and precise measurement, and more accurate felling length.
Excellent performance

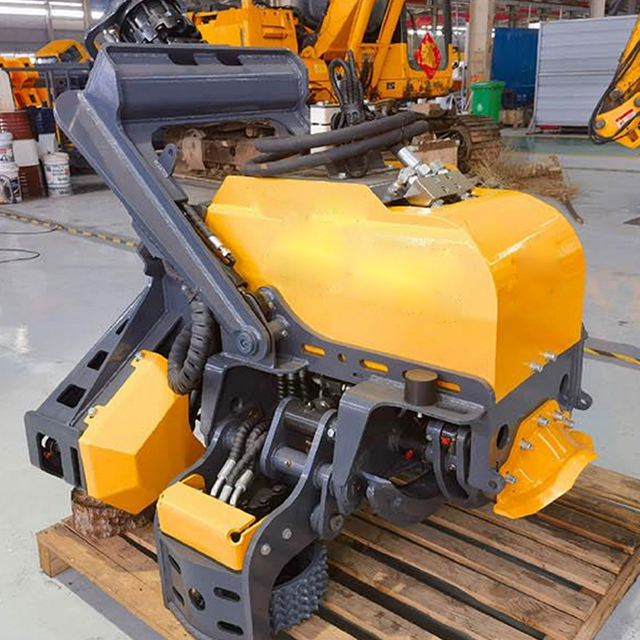

The ZKZN-Z5L feller has a maximum felling diameter of 450mm and a self-developed saw unit assembly, which has sufficient cutting capacity and automatic control to obtain the felling speed with the best performance.
Dimensions | |
| Weight: | 850kg |
Length: | 1260mm |
Width (closed and open): | 910/1160mm |
Height: | 1160mm |
Power consumption: | 40-60kw |
Working pressure: | 24Mpa |
Saw device | |
Hydraulic oil saw | |
Maximum felling diameter: | 450mm |
Saw board length: | 21' |
Chain pitch: | 0.604” |
Saw oil tank capacity: | 5L |
Chain saw speed: | 40m/s |
Feeding device | |
Feeding system: | 3 feeding wheels |
Maximum opening of feeding wheel: | 450mm |
Feeding force: | 17kn |
Feeding speed: | 4m/s |
Delimbing device | |
Number of delimbing knives: | 4+1 |
Maximum opening of front knife: | 490mm |
Maximum opening of rear knife: | 450mm |
