SX3315DU406
Suntoak
Product Description

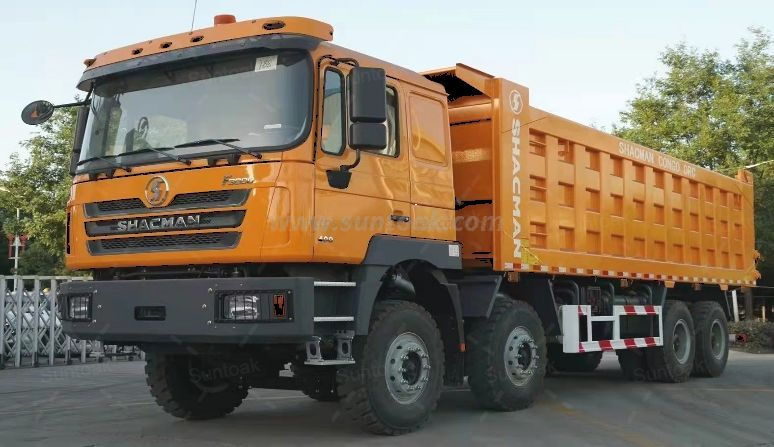

SHACMAN F3000 430HP 8X4 DUMPER (Model:SX3315DU406)
Brand: SHACMAN
430HP Weichai Engine · High Power & Durability
8×4 Drive · Super Heavy-Load Bearing
Q355 Manganese Box · Mining-Grade Anti-Wear
Hyva 191 Cylinder · Stable Fast Lifting
HD Dual Reduction Axle · Strong Traction & Safety
| Configuration | Item | Specification |
| Chassis | Driving Type | 8×4 |
| Model | SX3315DU406 | |
| Engine | Weichai WP12.430E201, Euro Ⅱ | |
| Clutch | ￠430 Diaphragm Clutch | |
| Transmission | Fast 12JSDX220TB+QH50 PTO, 12F+2R Gears | |
| Front Axle | 9.5t HD Axle | |
| Rear Axle | 16t HD Double Reduction Drive Axle (Ratio:5.92) | |
| Frame | Parallel Straight Ladder Structure | |
| Fuel Tank | 400L Iron Tank | |
| Steering | Integral Circulation Ball Power Steering | |
| Braking System | Dual-circuit air brake (running); Spring parking brake; Engine exhaust auxiliary brake | |
| Tires | 12.00R20, Mixed Pattern | |
| Cabin | MAN F3000 Semi-lengthened Flat Cabin | |
| Electric System | 24V, 165Ah Battery; Air horn/headlamp/fog light/turn light/reverse light | |
| Dimensions (mm) | Wheelbase:1800+3975+1400; L×W×H:10700×2500×3550 | |
| Body | Internal Box Size (mm) | 7800×2500×1800 |
| Cargo Box | Grid Rectangular Box (Transverse Tie Rods Inside); Q355 Manganese Plate (Bottom 10mm/Side 8mm) | |
| Lifting System | Front Lifting, Hyva 191 Oil Cylinder | |
| Structure & Fittings | 5 Bottom Longitudinal Beams; Full Welding Carriage; I-steel on Side Plate Top; Full Wrapped Rear Door; Single Manual Hook; Mining-type Round Tube Rear Protection; Spray System | |
| Key Fittings | Standard Equipments | Hydraulic main seat; 4-point hydraulic suspension cab; Oil bath air filter; Single cooling AC; Battery/fuel anti-theft; Reverse buzzer; Reinforced leaf spring; Rear axle stabilizer bar; LED taillight; Steel bumper; 2 cab top warning lights; 2kg fire extinguisher; 32T hydraulic jack; Jacksel compressor |
