Product Description

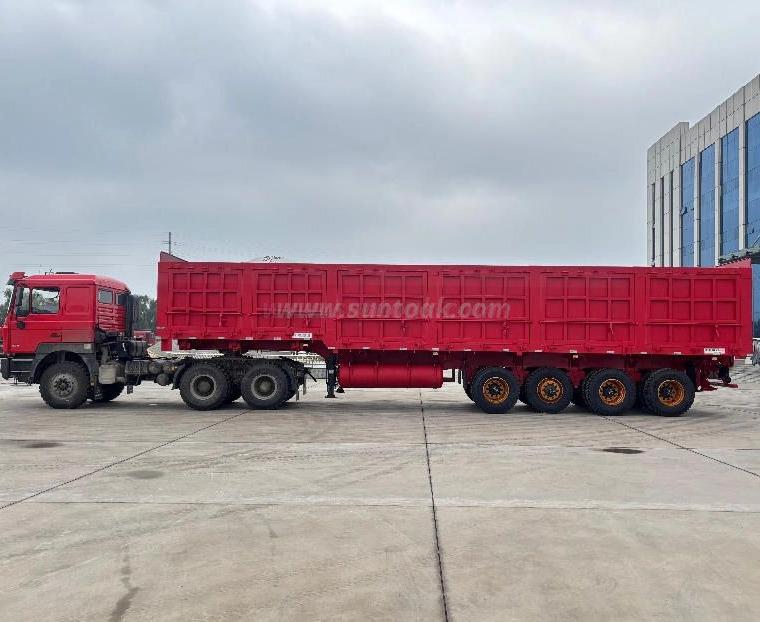

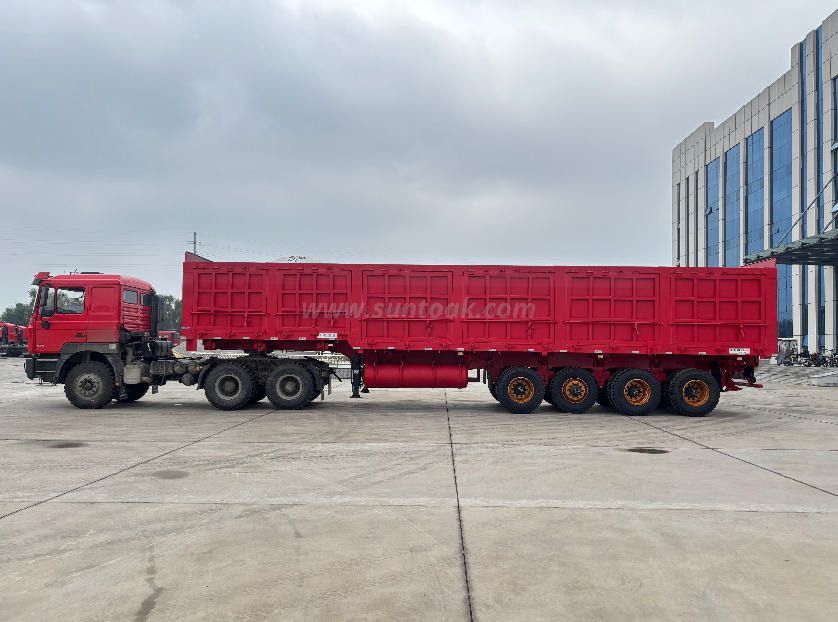

13.5-meter Four-Axle Tipping Semi-Trailer
Ultra-High Payload - 120,000kg heavy-duty loading capacity
T700 High-Strength Steel - Durable frame for long-haul use
20-Ton FUWA Axles - Stable & reliable with enhanced suspension

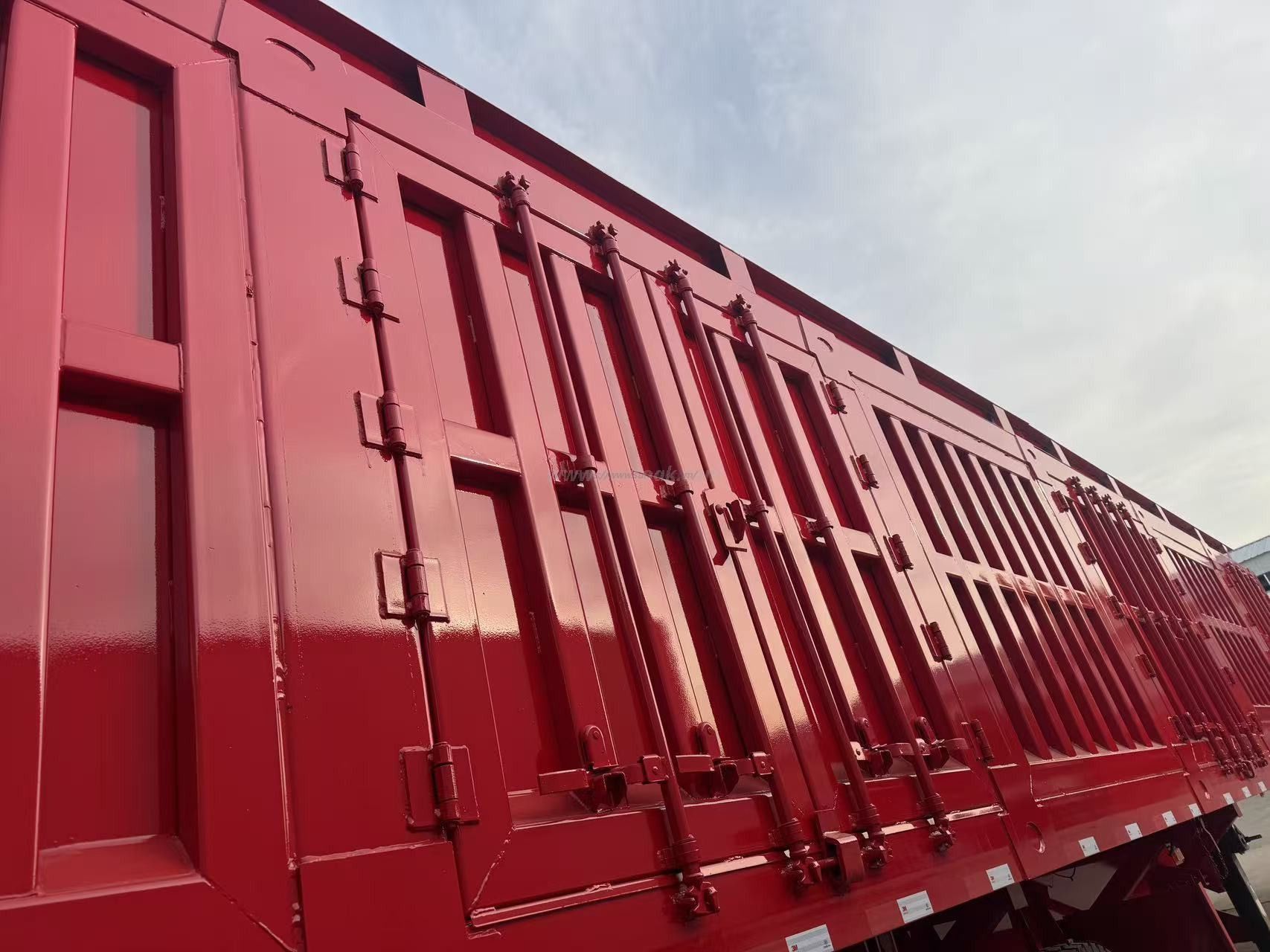

6 Side Hanging Doors - Fast loading/unloading for bulk cargo
Sea Freight Anti-Corrosion - Polyurethane paint + full-body wax spray
24V LED Electrical System - Safe operation in all conditions
Customizable Colors - Tailored to meet branding needs
Brake King System - Superior braking performance for safety
Type | 13.5-meter four-axle tipping semi-trailer | |
Parameter | Dimension(mm) | 13500×2700×1800 |
Main beam （mm） | Upper strip 18mm / middle plate 12mm / lower strip 20mm | |
roof rail | 160 * 60 square tube (T700) | |
Side beam | 180 * 60 square tube (T700) | |

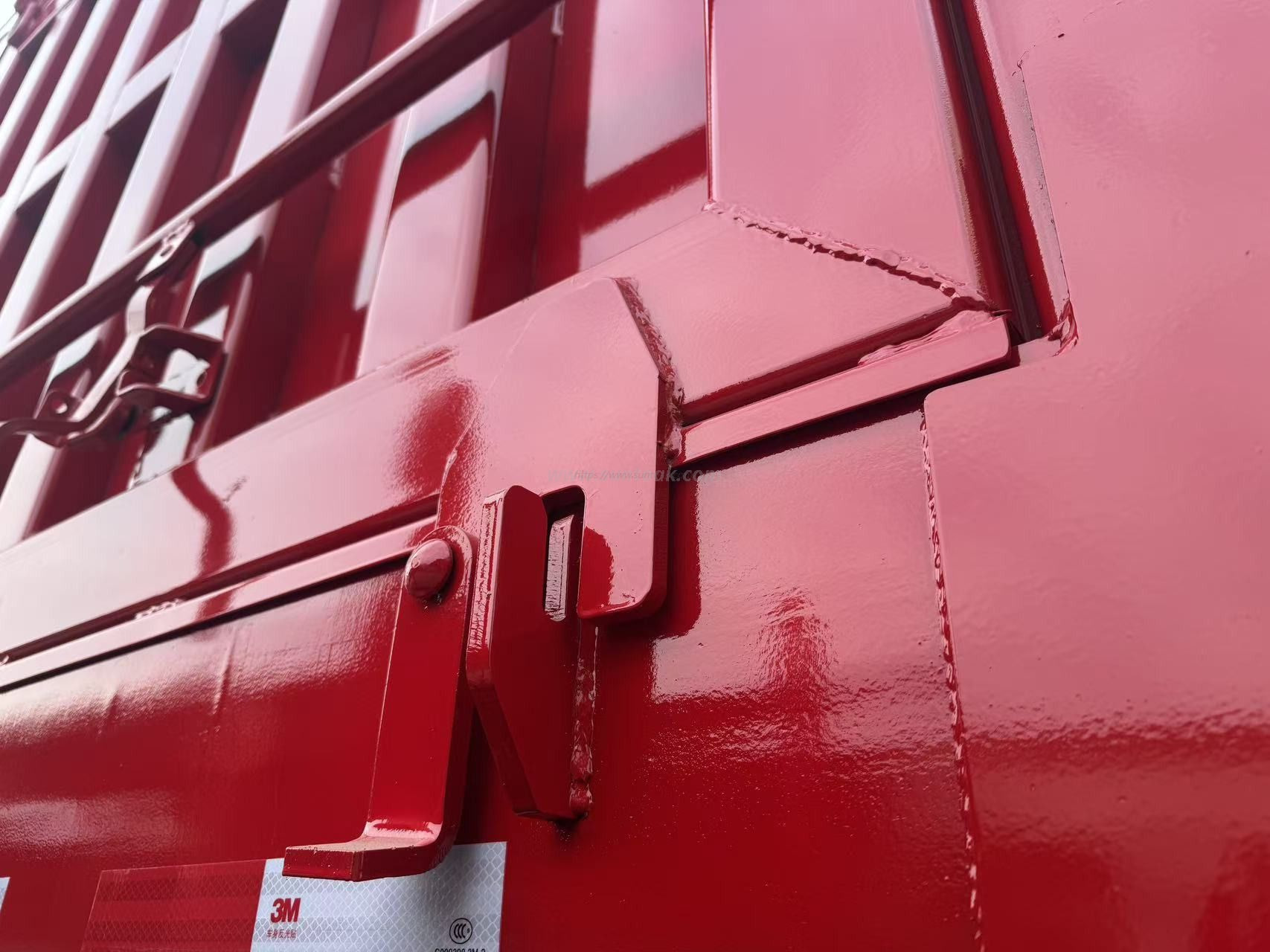

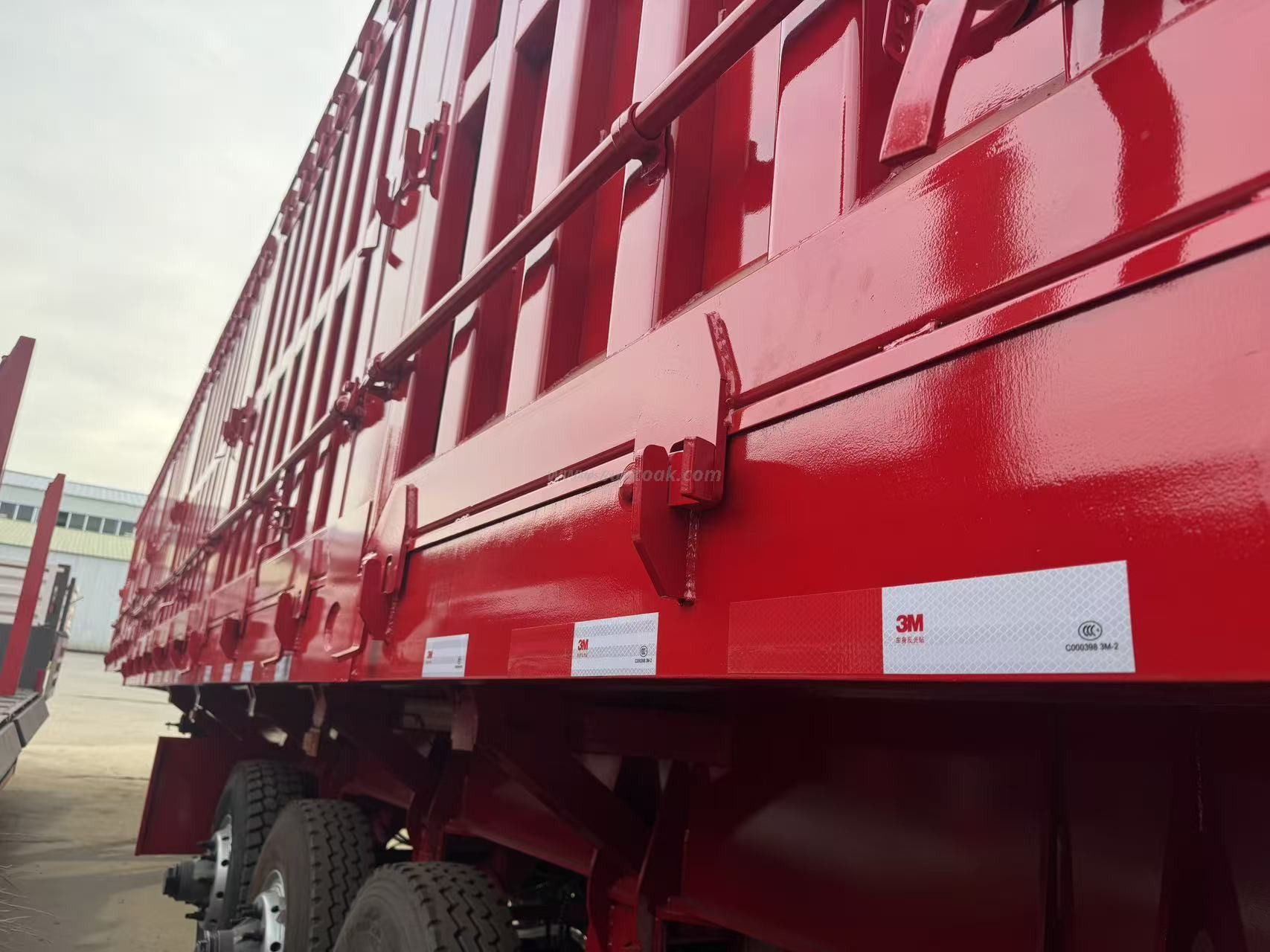

Side plate | 4mm high strength（T700）, six open hanging door on each side | |
Bottom platform | 4mm Gao Qiang | |

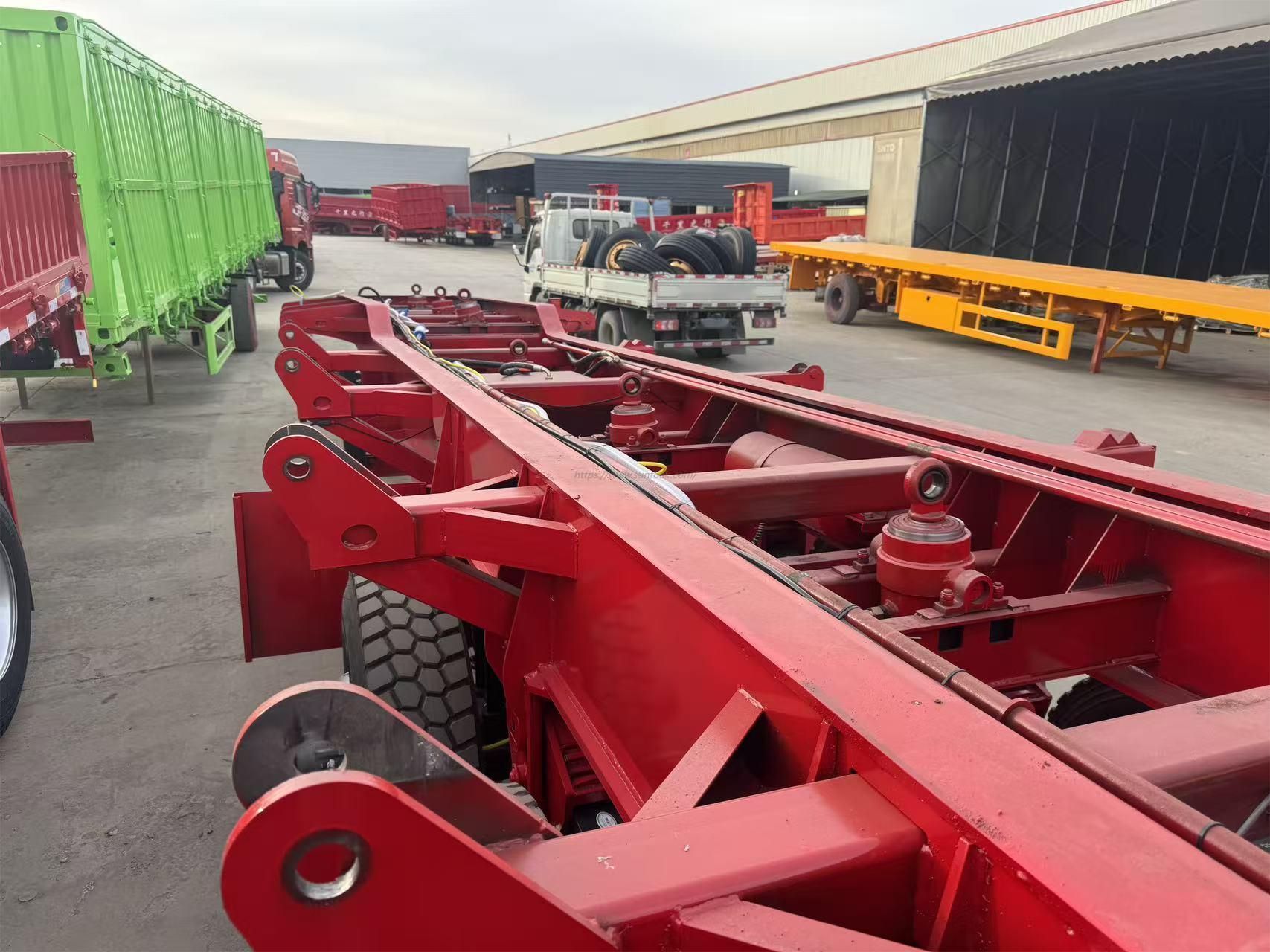

Beam | 100 * 100 square tubes+100 * 50 square tubes（T700） | |
main beam | 80 * 120 square tube（T700） | |
fifth wheel height(mm) | The height will be adjusted according to the tractor specification | |
Payload （kg） | 120,000kg | |
OEM | slave cylinder | 6 double chambers |
hydro-cylinder | 150，7+1 | |
Brake system | Brake King | |

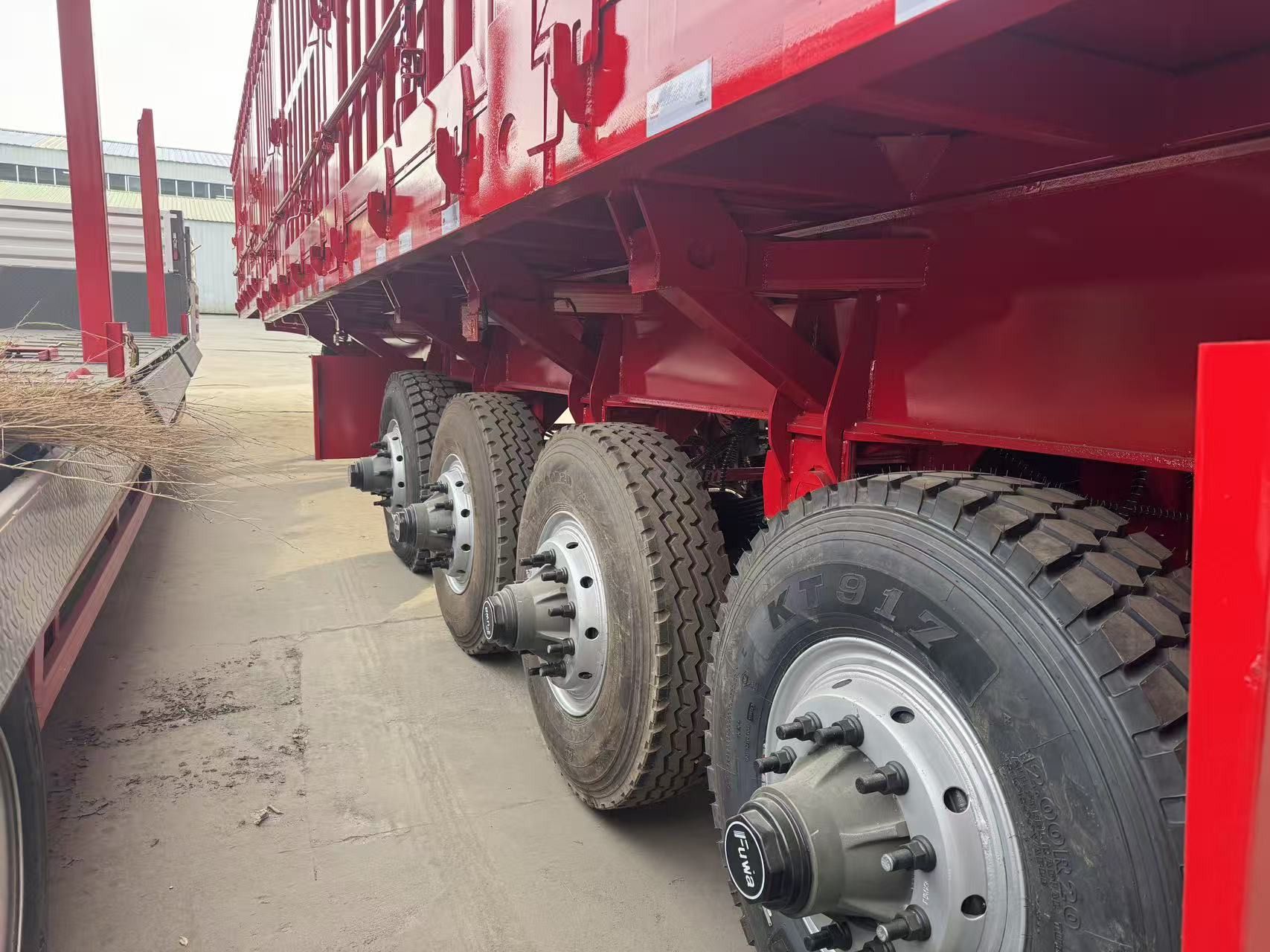

Axle | 20 Tons FUWA of eggplant 4 axis | |

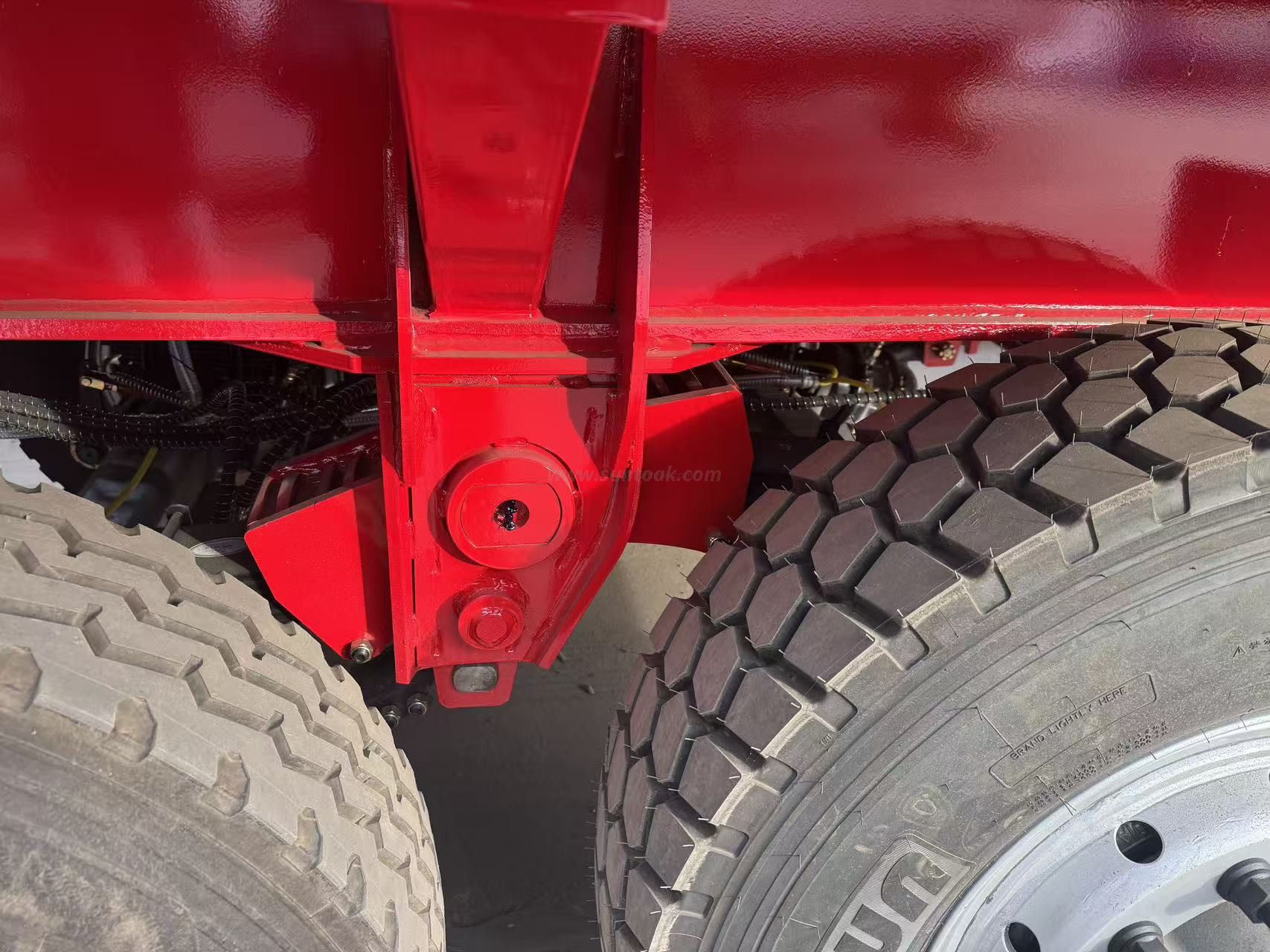

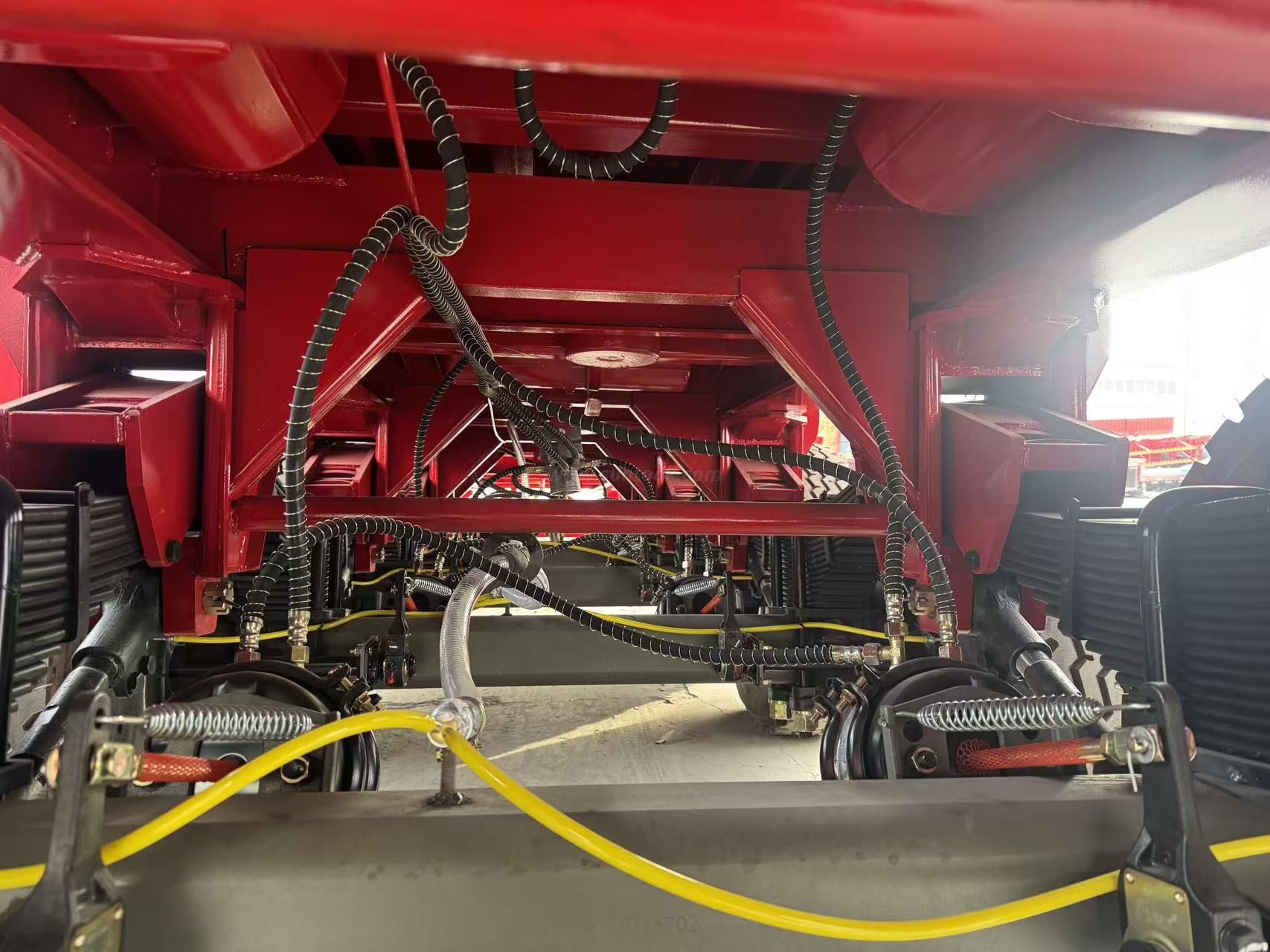

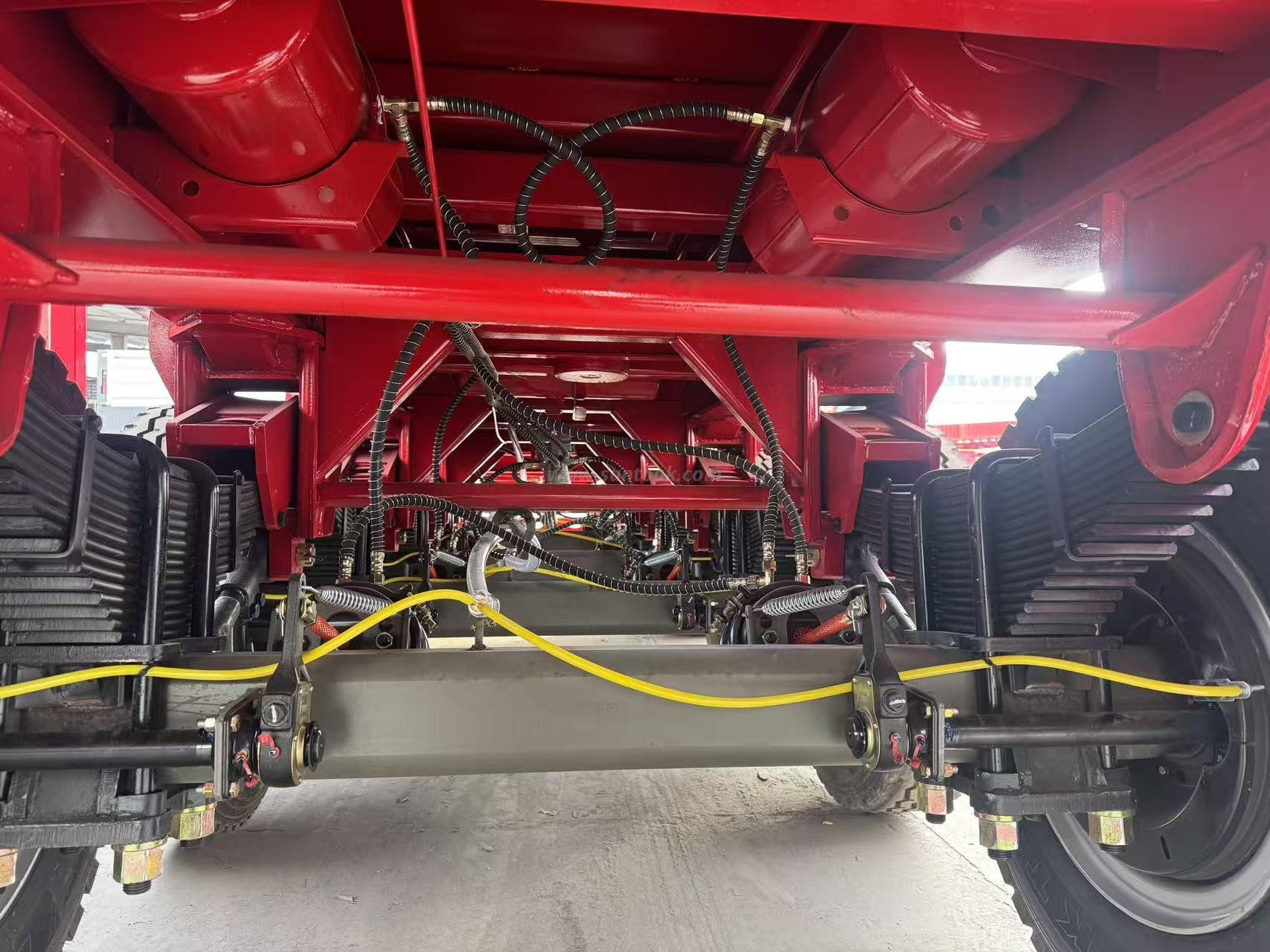

Hang | Enhanced type of mechanical suspension | |
Tire | 1200R-20×17 | |

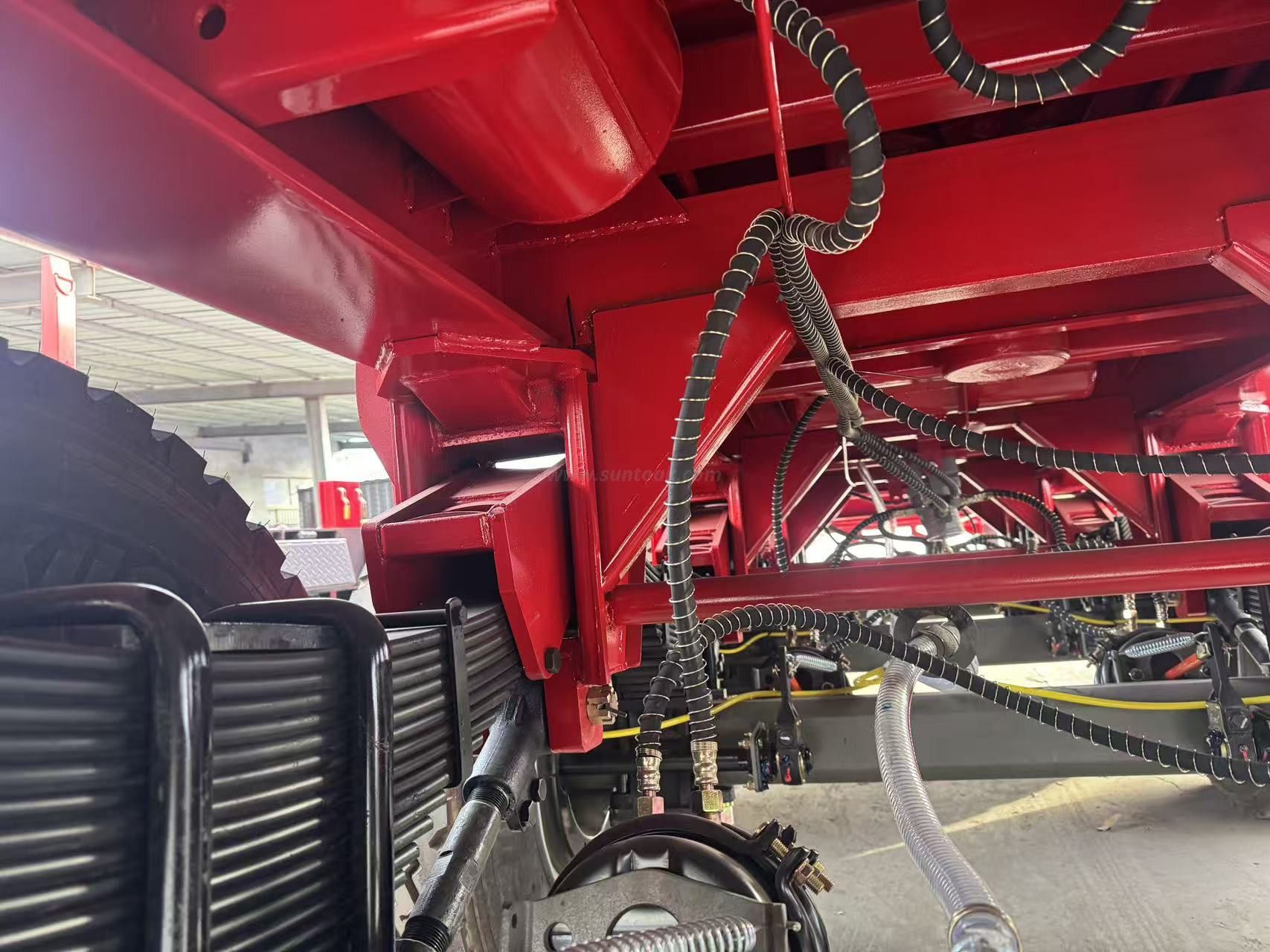

Spring leaf | 16 thick x 12 pieces x 12 cm wide | |
air reservoir | Comes standard with 3 | |
Electrical System | 24V, LED lamp | |
Paint | Primer + top coat, polyurethane paint | |
Color | Following the customer’s request | |
Wax Spray | Anticorrosive wax spraying for the whole vehicle sea transportation | |
