Applicable Objects

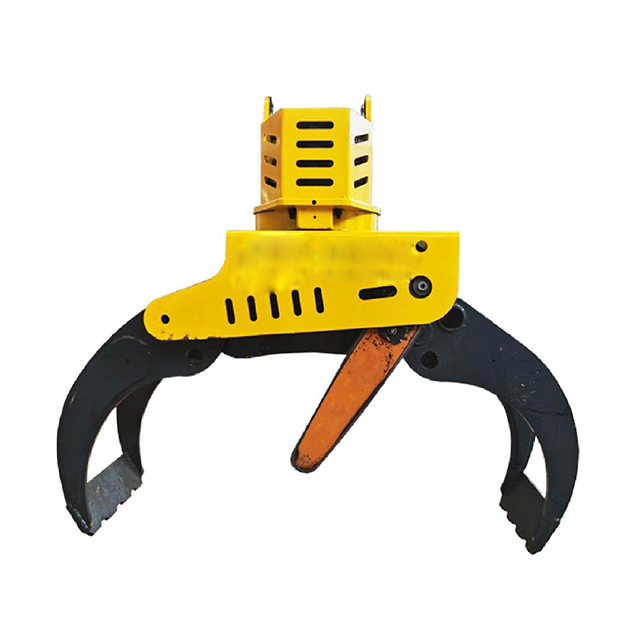

The clamp saw is mainly suitable for felling and loading and unloading of various tree species and bamboo.
Advantages
It is made of Q355 steel, which has the advantages of light texture and wear resistance.
ZK-450 configuration parameters | |||
Machine weight: | 550kg | Motor operating pressure: | 22Map |
Length, width, height | 910*620*1150mm | Maximum clamp weight: | 2-3T |
Applicable excavator tonnage: | 10-20 tons | Number of clamps: | 2 |
Maximum working pressure: | 28-32Mpa | Slewing self-locking function: | Yes |
Cylinder operating pressure: | 28Mpa | Automatic lubrication: | Yes |
Slewing motor displacement: | 825ML | Oil tank capacity: | 3L |
Slewing speed: | 10-30r/min | Control method: | Electric control handle control |
Maximum opening: | 1350mm | Saw guide length: | 21 inches |
