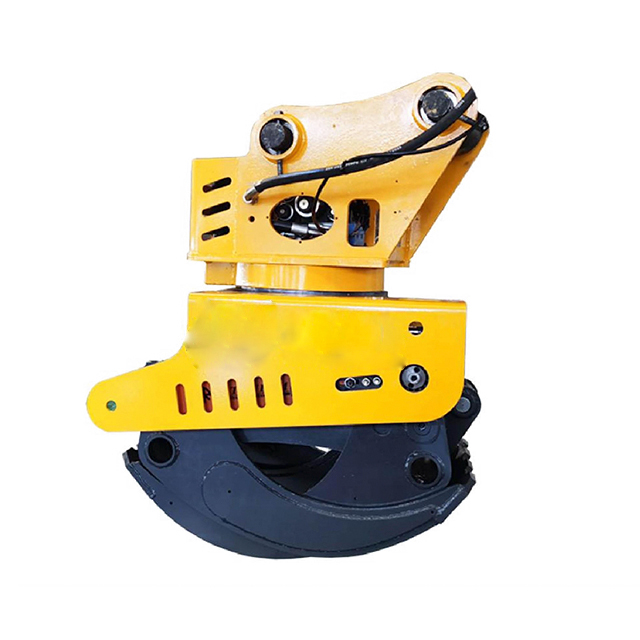

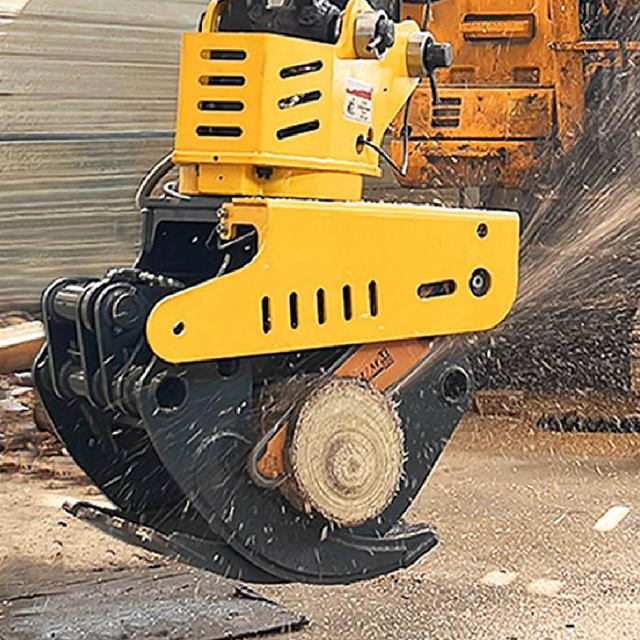

The clamp saw is mainly suitable for felling and loading and unloading construction of various tree species and bamboo felling and loading and unloading construction occasions.
Advantages
1. It uses special steel with high strength and wear resistance.
2. It is equipped with imported solenoid valve and can rotate clockwise and counterclockwise 360°
| ZK-350 configuration parameters | |||
Machine weight: | 450kg | Motor operating pressure: | 16Map |
Length, width, height: | 830*500*1100mm | Maximum clamp weight: | 1-2T |
Applicable excavator tonnage: | 6-10 tons | Number of clamps: | 2 |
Maximum working pressure: | 21-25Mpa | Swing self-locking function: | Yes |
Cylinder operating pressure: | 21Mpa | Automatic lubrication: | Yes |
Swing motor displacement: | 625ML | Oil tank capacity: | 3L |
Swing speed: | 5-20r/min | Control method: | Electric control handle control |
Maximum opening: | 1250mm | Saw guide length: | 18 inches |
